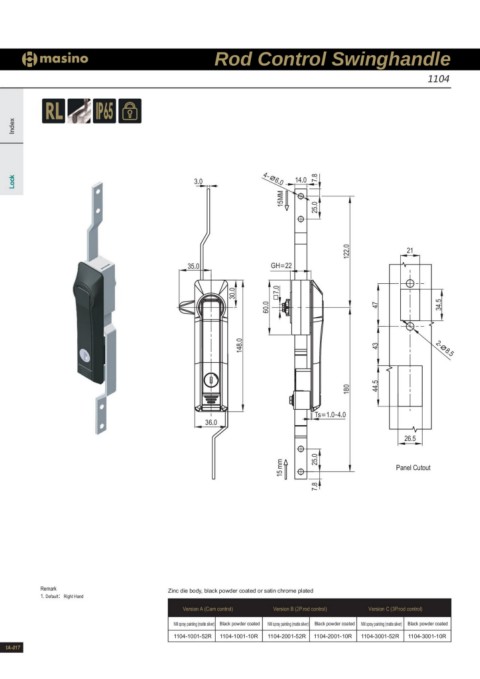

Rod Control Swinghandle
1104

Index

Lock 3.0 4- 6.015MM14.0
25.0 7.8

122.0 21

35.0 GH=22

30.0 180 34.5
60.0 44.5 43 47

7.0

2- 8.5148.0

Ts=1.0-4.0
36.0

26.5
Panel Cutout
15 mm
7.8 25.0

Remark Zinc die body, black powder coated or satin chrome plated
1. Default：Right Hand
1A-017 Version A (Cam control) Version B (2P.rod control) Version C (3P.rod control)

NM spray painting (matte silver) Black powder coated NM spray painting (matte silver) Black powder coated NM spray painting (matte silver) Black powder coated
1104-1001-52R 1104-1001-10R 1104-2001-52R 1104-2001-10R 1104-3001-52R 1104-3001-10R
