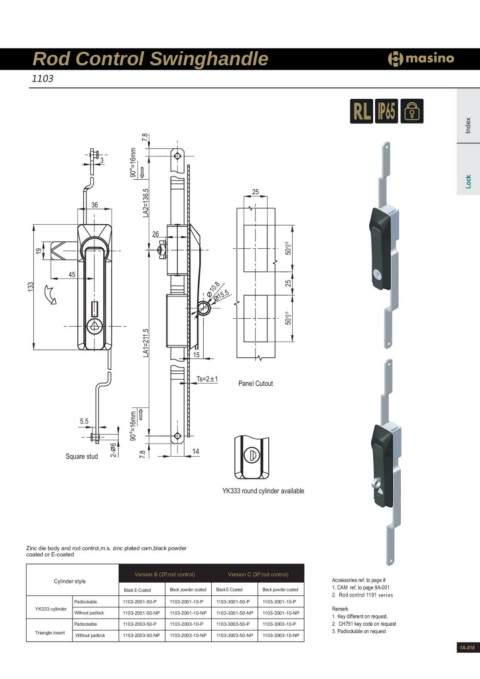

Rod Control Swinghandle

1103

90°=16mm Index
7.8
3 Lock
36 LA2=136.5 25
15.5
45 26

133 10.8 50+00.5 25 50+00.5
19

LA1=211.5 15
Ts=2±1
Panel Cutout

5.5 2- 6 14
Square stud 90°=16mm YK333 round cylinder available

7.8

Zinc die body and rod control,m.s. zinc plated cam,black powder
coated or E-coated

Cylinder style Version B (2P.rod control) Version C (3P.rod control) Accessories ref. to page #
1. CAM ref. to page 9A-001
YK333 cylinder Padlockable Black E-Coated Black powder coated Black E-Coated Black powder coated 2. Rod control 1191 series
Triangle insert Without padlock 1103-2001-50-P 1103-2001-10-P 1103-3001-50-P 1103-3001-10-P Remark
Padlockable 1103-2001-50-NP 1103-2001-10-NP 1103-3001-50-NP 1103-3001-10-NP 1. Key different on request.
Without padlock 1103-2003-50-P 1103-2003-10-P 1103-3003-50-P 1103-3003-10-P 2. CH751 key code on request
1103-2003-50-NP 1103-2003-10-NP 1103-3003-50-NP 1103-3003-10-NP 3. Padlockable on request

1A-016
