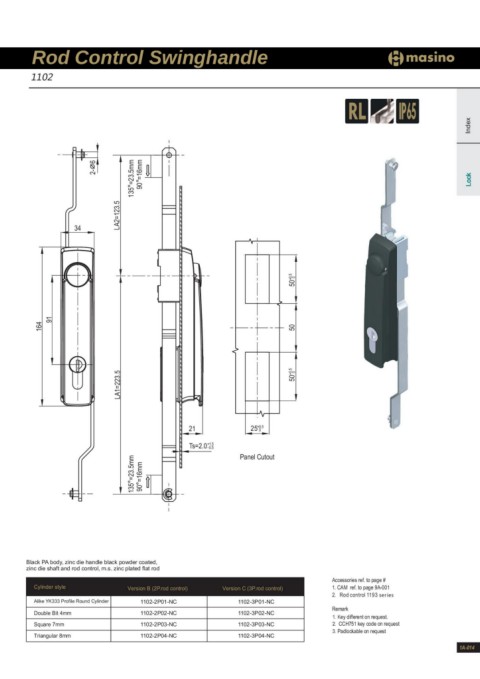

Rod Control Swinghandle Index

1102 2- 6 Lock
LA2=123.5
34
135°=23.5mm
90°=16mm

164 50+00.5 50 50+00.5
91

LA1=223.5

21 25+00.5
Ts=2.0+- 10..55 Panel Cutout

135°=23.5mm
90°=16mm

Black PA body, zinc die handle black powder coated,
zinc die shaft and rod control, m.s. zinc plated flat rod

Cylinder style Version B (2P.rod control) Version C (3P.rod control) Accessories ref. to page #
1. CAM ref. to page 9A-001
Alike YK333 Profile Round Cylinder 1102-2P01-NC 1102-3P01-NC 2. Rod control 1193 series
Double Bit 4mm 1102-2P02-NC 1102-3P02-NC Remark
Square 7mm 1102-2P03-NC 1102-3P03-NC 1. Key different on request.
Triangular 8mm 1102-2P04-NC 1102-3P04-NC 2. CCH751 key code on request
3. Padlockable on request

1A-014
