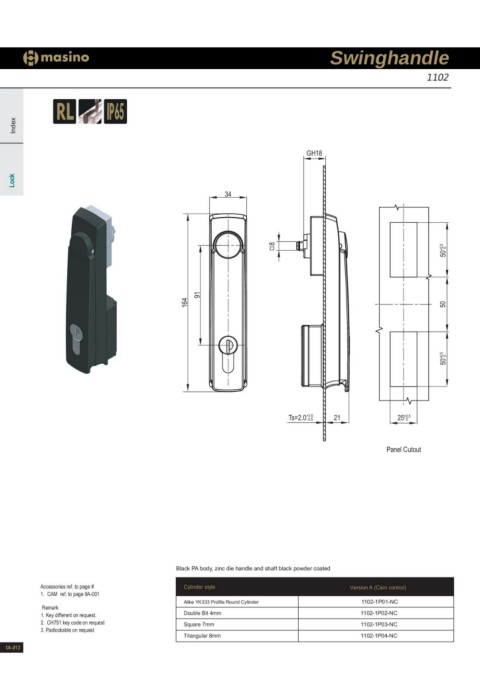

Index Swinghandle
1102
Lock
GH18
34

164 50+00.5 50 50+00.5
91
8

Ts=2.0+- 10..55 21 25+00.5
Panel Cutout

Accessories ref. to page # Black PA body, zinc die handle and shaft black powder coated Version A (Cam control)
1. CAM ref. to page 9A-001
Remark Cylinder style 1102-1P01-NC
1. Key different on request. 1102-1P02-NC
2. CH751 key code on request Alike YK333 Profile Round Cylinder 1102-1P03-NC
3. Padlockable on request Double Bit 4mm 1102-1P04-NC
Square 7mm
Triangular 8mm
