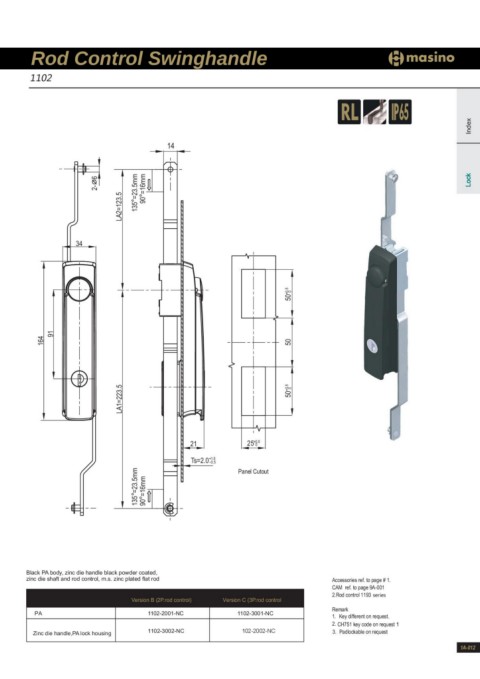

Rod Control Swinghandle Index
1102 2- 6 Lock
LA2=123.5
14
135°=23.5mm
34 90°=16mm
164 50+00.5 50 50+00.5
91
LA1=223.5
21 25+00.5
Ts=2.0+- 10..55
Panel Cutout
135°=23.5mm
90°=16mm
Black PA body, zinc die handle black powder coated, Accessories ref. to page # 1.
zinc die shaft and rod control, m.s. zinc plated flat rod CAM ref. to page 9A-001
2.Rod control 1193 series
PA Version B (2P.rod control) Version C (3P.rod control Remark
Zinc die handle,PA lock housing 1102-2001-NC 1102-3001-NC 1. Key different on request.
2. CH751 key code on request 1
1102-3002-NC 102-2002-NC 3. Padlockable on request
1A-012
