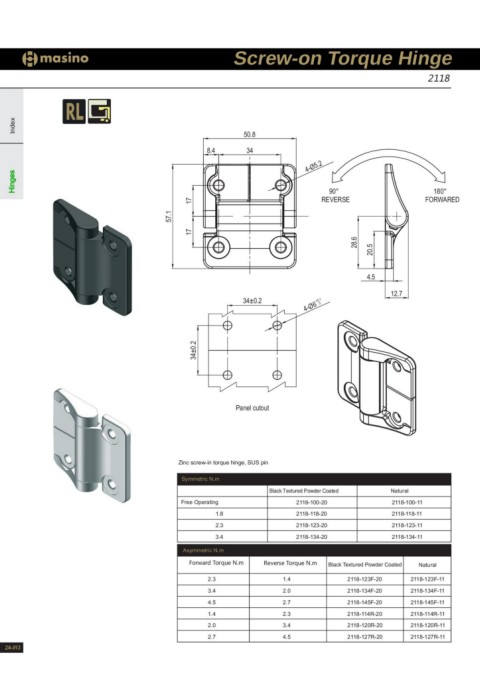

Screw-on Torque Hinge
2118
Index 50.8
8.4 34
Hinges 4-Ø5.2 180°
90° FORWARED
57.1
17 17 REVERSE
28.6
20.5
34±0.2 4-Ø6+0.01 4.5
12.7
34±0.2
Panel cutout
Zinc screw-in torque hinge, SUS pin
Symmetric N.m Black Textured Powder Coated Natural
2118-100-20 2118-100-11
Free Operating 2118-118-20 2118-118-11
1.8 2118-123-20 2118-123-11
2.3 2118-134-20 2118-134-11
3.4
Reverse Torque N.m Black Textured Powder Coated Natural
Asymmetric N.m
Forward Torque N.m 1.4 2118-123F-20 2118-123F-11
2.0 2118-134F-20 2118-134F-11
2.3 2.7 2118-145F-20 2118-145F-11
3.4 2.3 2118-114R-20 2118-114R-11
4.5 3.4 2118-120R-20 2118-120R-11
1.4 4.5 2118-127R-20 2118-127R-11
2.0
2.7
