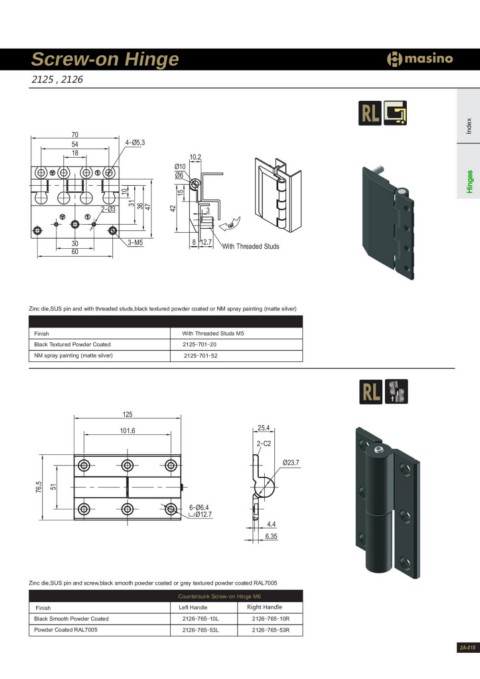

Screw-on Hinge
2125 , 2126
70 Index
54 4-Ø5.3
18 31 10 10.2 Hinges
36 Ø10
2-Ø3 47 Ø6
30 3-M5 42 15
60 3
8 12.7 With Threaded Studs
Zinc die,SUS pin and with threaded studs,black textured powder coated or NM spray painting (matte silver)
Finish With Threaded Studs M5
Black Textured Powder Coated 2125-701-20
NM spray painting (matte silver) 2125-701-52
125 25.4
101.6 2-C2
76.5 Ø23.7
51
4.4
6-ØØ162.4.7 6.35
Zinc die,SUS pin and screw,black smooth powder coated or grey textured powder coated RAL7005
Countersunk Screw-on Hinge M6
Finish Left Handle Right Handle
Black Smooth Powder Coated
Powder Coated RAL7005 2126-765-10L 2126-765-10R
2126-765-53L 2126-765-53R
