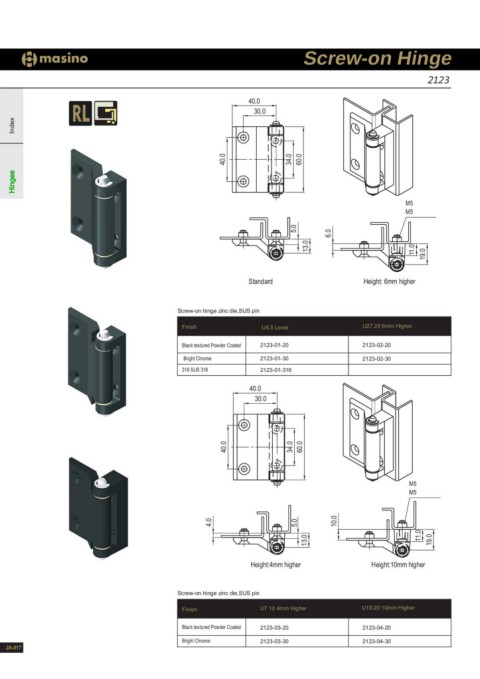

P. 132
Screw-on Hinge
2123
40.0
30.0
Index
40.0 34.0
60.0
Hinges
5.0 6.0 M5
13.0 M5
11.0
Height: 6mm higher 19.0
Standard U27.28 6mm Higher
2123-02-20
Screw-on hinge zinc die,SUS pin 2123-02-30
Finish U4.5 Level
Black textured Powder Coated 2123-01-20
Bright Chrome
316 SUS 316 2123-01-30
2123-01-316
40.0
30.0
4.0 34.0
40.0 60.0
M5
M5
5.0 10.0
13.0
11.0
19.0
Height:4mm higher Height:10mm higher
Screw-on hinge zinc die,SUS pin U19.20 10mm Higher
2123-04-20
Finish U7.10 4mm Higher 2123-04-30
2A-017 Black textured Powder Coated 2123-03-20
Bright Chrome 2123-03-30
