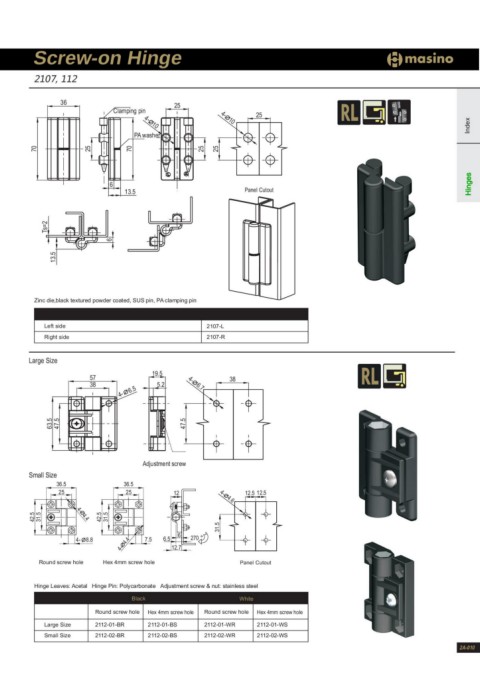

Screw-on Hinge

2107, 112

36 Clamping pin4- 10 25 4- 10 25

PA washer Index

70 6 Panel Cutout Hinges
Ts=2 13.5
13.5

25
6

70
25
25

Zinc die,black textured powder coated, SUS pin, PA clamping pin

Left side 2107-L
Right side 2107-R

Large Size

5378 4- 6.5 19.5 4- 6.7 38
5.2

Small Size42.5 Adjustment screw 4- 4.6 12.5 12.5
31.5 36.5
36.5 25 12
2563.5
47.5
42.54- 4.4
31.5
4- 4.4
47.5
31.5
4- 8.8 7.5 6.5 6 270 °
Round screw hole 12.7
Panel Cutout
Hex 4mm screw hole

Hinge Leaves: Acetal Hinge Pin: Polycarbonate Adjustment screw & nut: stainless steel

Black White

Round screw hole Hex 4mm screw hole Round screw hole Hex 4mm screw hole

Large Size 2112-01-BR 2112-01-BS 2112-01-WR 2112-01-WS
Small Size 2112-02-BR 2112-02-BS 2112-02-WR 2112-02-WS

2A-010
