P. 131

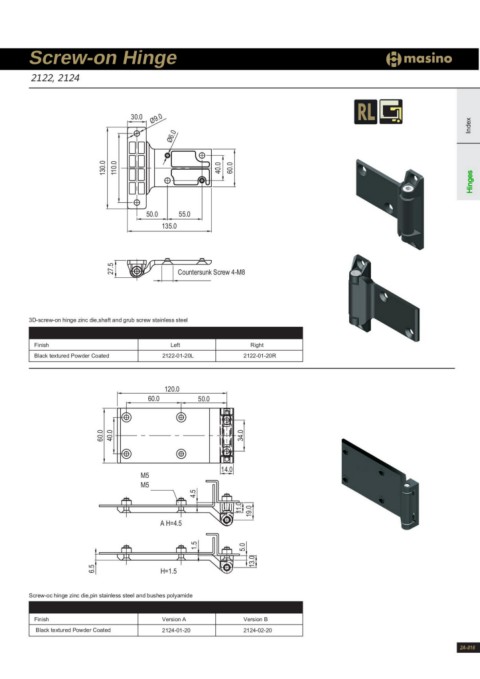

Screw-on Hinge Index
2122, 2124
30.0 Ø9.0
130.0 Hinges
110.0
Ø6.0
40.0
60.0
27.5 50.0 55.0
135.0
Countersunk Screw 4-M8
3D-screw-on hinge zinc die,shaft and grub screw stainless steel
Finish Left Right
Black textured Powder Coated 2122-01-20L 2122-01-20R
120.0 50.0
60.0
6.5 34.0
60.0
40.0 M5 14.0
M5
1.5 4.5 11.0
A H=4.5 19.0
H=1.5 5.0
13.0
Screw-oc hinge zinc die,pin stainless steel and bushes polyamide
Finish Version A Version B
Black textured Powder Coated 2124-01-20 2124-02-20
2A-016
