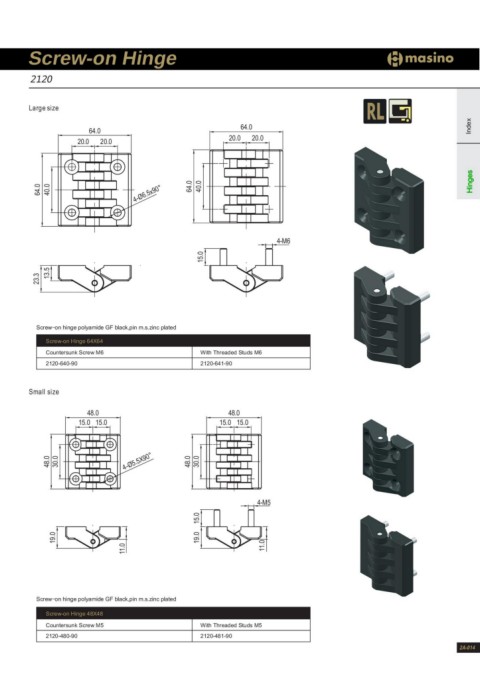

Screw-on Hinge
2120
Large size
64.0 64.0 Index
20.0 20.0 20.0 20.0
23.3 64.0 4-Ø6.5x90° 4-M6 Hinges
13.5 40.0
64.0
15.0 40.0
Screw-on hinge polyamide GF black,pin m.s.zinc plated With Threaded Studs M6
2120-641-90
Screw-on Hinge 64X64
Countersunk Screw M6 48.0
2120-640-90 15.0 15.0
Small size
48.0
15.0 15.0
48.0 4-Ø5.5X90°
30.0 11.0
48.0
4-M5
19.0 15.0 30.0
19.0 11.0
Screw-on hinge polyamide GF black,pin m.s.zinc plated With Threaded Studs M5
2120-481-90
Screw-on Hinge 48X48
Countersunk Screw M5
2120-480-90
