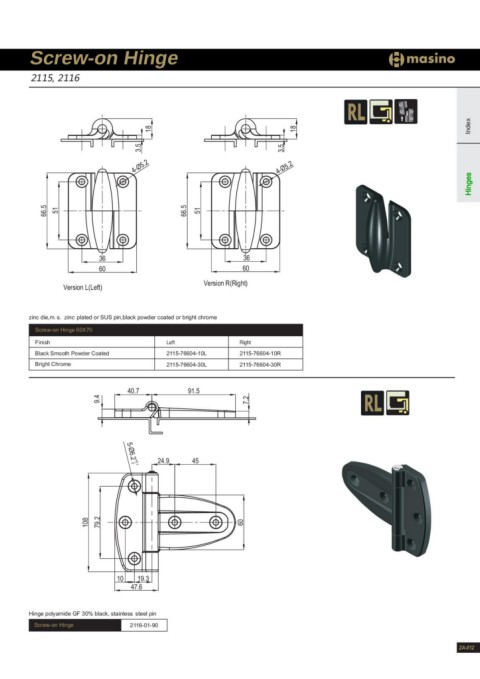

Screw-on Hinge 3.5 3.5 Index
18 18
2115, 2116
4-Ø5.2 Hinges
4-Ø5.2

66.5 66.5
51 51

36 36
60 60
Version L(Left) Version R(Right)

zinc die,m.s. zinc plated or SUS pin,black powder coated or bright chrome

Screw-on Hinge 60X70

Finish Left Right
Black Smooth Powder Coated 2115-76604-10L 2115-76604-10R
Bright Chrome 2115-76604-30L 2115-76604-30R

40.7 91.5
108
79.2 9.45-Ø6.2+00.1 24.9 45
60 7.2

10 19.3
47.6

Hinge polyamide GF 30% black, stainless steel pin

Screw-on Hinge 2116-01-90

2A-012
