P. 123

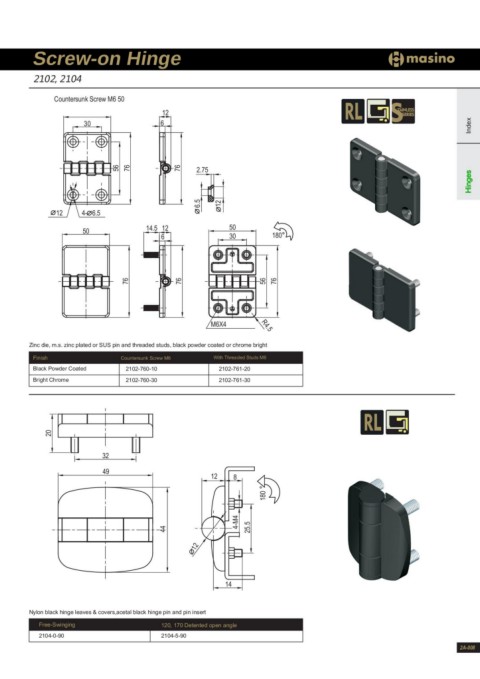

Screw-on Hinge
2102, 2104
Countersunk Screw M6 50 12 Index
30 6
56 2.75 Hinges
76
76
6.5
12
12 4- 6.5 14.5 12 50
50 6 30 180°
76
76
56
76
M6X4 R4.5
Zinc die, m.s. zinc plated or SUS pin and threaded studs, black powder coated or chrome bright
Finish Countersunk Screw M6 With Threaded Studs M6
Black Powder Coated 2102-760-10 2102-761-20
Bright Chrome 2102-760-30 2102-761-30
20
32
49 12 8
180 °
44 4-M4
12 25.5
14
Nylon black hinge leaves & covers,acetal black hinge pin and pin insert
Free-Swinging 120, 170 Detented open angle
2104-0-90 2104-5-90
2A-008
