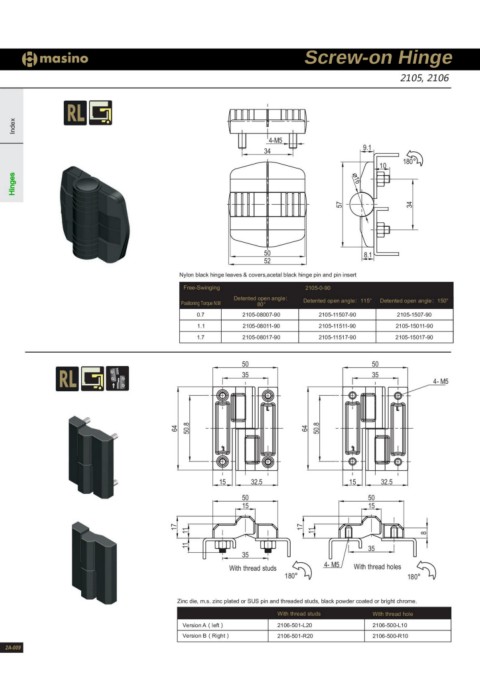

Screw-on Hinge
2105, 2106

Index

4-M5 9.1 180°
34 10

Hinges 16

57
34

50 8.1
52

Nylon black hinge leaves & covers,acetal black hinge pin and pin insert

Free-Swinging Detented open angle： 2105-0-90 Detented open angle：150°
80° Detented open angle：115°
Positioning Torque N.M 2105-1507-90
0.7 2105-08007-90 2105-11507-90 2105-15011-90
1.1 2105-08011-90 2105-11511-90 2105-15017-90
1.7 2105-08017-90 2105-11517-90

50 50
35 35 4- M5

17 64 64
11 11 50.8 50.8

15 32.5 15 32.5
50 50
15 15

17 8
11

35 4- M5 35
With thread studs With thread holes
180°
180°

Zinc die, m.s. zinc plated or SUS pin and threaded studs, black powder coated or bright chrome.

Version A（left） With thread studs With thread hole
Version B（Right） 2106-501-L20 2106-500-L10
2106-501-R20 2106-500-R10

2A-009
