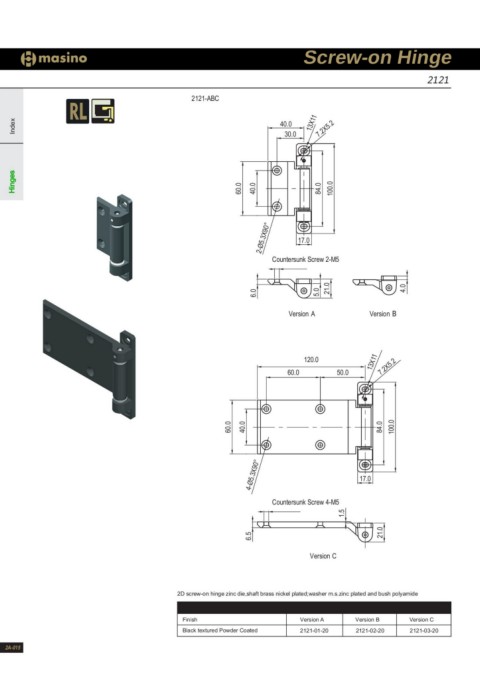

P. 130
Screw-on Hinge
2121
2121-ABC
Index 40.0 13X117.2X5.2
30.0
Hinges 60.0 84.0
2-Ø5.3X90° 40.0 100.0
17.0
Countersunk Screw 2-M5
6.0 5.0 4.0
21.0
Version A Version B
120.0 50.0 13X11 7.2X5.2
60.0
60.0 84.0
4-Ø5.3X90° 40.0 100.0
17.0
Countersunk Screw 4-M5
6.5 1.5
21.0
Version C
2D screw-on hinge zinc die,shaft brass nickel plated;washer m.s.zinc plated and bush polyamide
Finish Version A Version B Version C
Black textured Powder Coated 2121-01-20 2121-02-20 2121-03-20
2A-015
