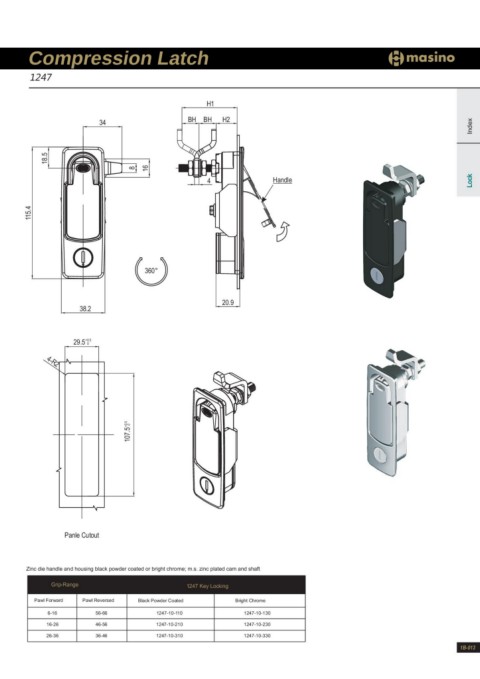

Compression Latch Index

1247

H1
34 BH BH H2

4 Handle
115.4 Lock
18.5

8
16

360°

38.2 20.9

29.5+00.5
4-R2

107.5+00.5

Panle Cutout

Zinc die handle and housing black powder coated or bright chrome; m.s. zinc plated cam and shaft

Grip-Range 1247 Key Locking

Pawl Forward Pawl Reversed Black Powder Coated Bright Chrome
1247-10-110 1247-10-130
6-16 56-66 1247-10-210 1247-10-230
16-26 46-56 1247-10-310 1247-10-330
26-36 36-46

1B-013
