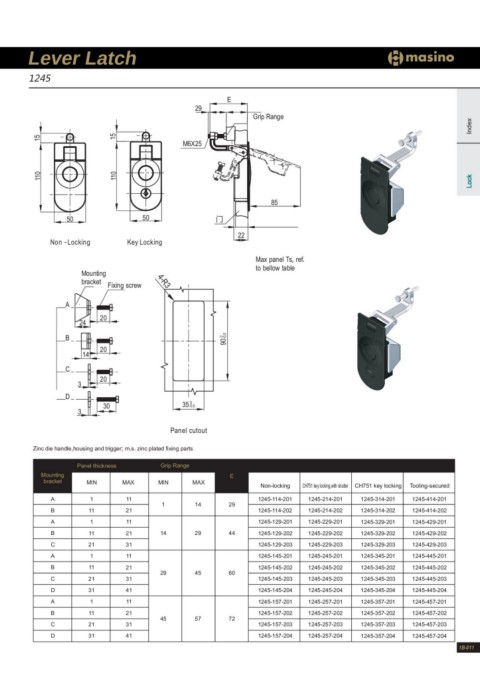

Page 57 - MasinoFastening_lukkokatalogi

Lever Latch

1245

29 E Index
M6X25 Grip Range

110 15 Lock
110 15

85

50 50 门
Non -Locking Key Locking 22

Mounting Max panel Ts, ref.
bracket Fixing screw to bellow table

4-R3

A 20 90-00.5
20
24 20 35-00.5
B 30

14
C

3
D

3

Panel cutout

Zinc die handle,housing and trigger; m.s. zinc plated fixing parts

Mounting Panel thickness Grip Range E
bracket MIN MAX MIN MAX
Non-locking CH751 key locking,with shutter CH751 key locking Tooling-secured

A 1 11 1 14 29 1245-114-201 1245-214-201 1245-314-201 1245-414-201

B 11 21 1245-114-202 1245-214-202 1245-314-202 1245-414-202

A 1 11 1245-129-201 1245-229-201 1245-329-201 1245-429-201

B 11 21 14 29 44 1245-129-202 1245-229-202 1245-329-202 1245-429-202

C 21 31 1245-129-203 1245-229-203 1245-329-203 1245-429-203

A 1 11 1245-145-201 1245-245-201 1245-345-201 1245-445-201

B 11 21 29 45 60 1245-145-202 1245-245-202 1245-345-202 1245-445-202
C 21 31 1245-145-203 1245-245-203 1245-345-203 1245-445-203

D 31 41 1245-145-204 1245-245-204 1245-345-204 1245-445-204

A 1 11 1245-157-201 1245-257-201 1245-357-201 1245-457-201

B 11 21 45 57 72 1245-157-202 1245-257-202 1245-357-202 1245-457-202
C 21 31 1245-157-203 1245-257-203 1245-357-203 1245-457-203

D 31 41 1245-157-204 1245-257-204 1245-357-204 1245-457-204

1B-011
