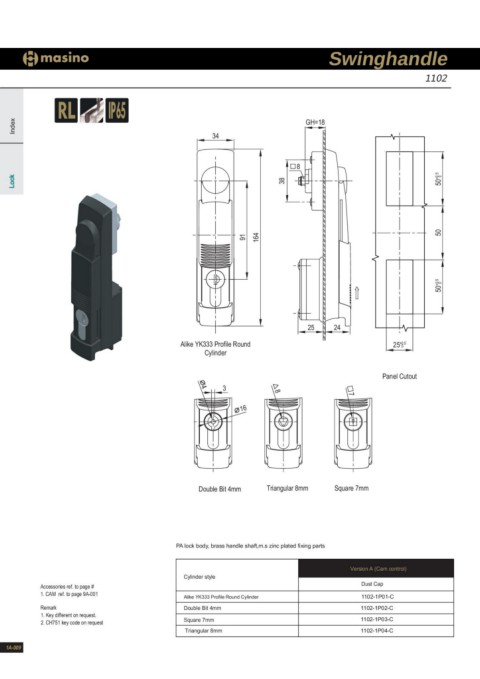

Index Swinghandle
1102

GH=18
34

8

Lock 91
164

38
50+00.5 50 50+00.5

25 24

Alike YK333 Profile Round 25+00.5
Cylinder Panel Cutout

3
16
□7

△8

4

Double Bit 4mm Triangular 8mm Square 7mm

Accessories ref. to page # PA lock body, brass handle shaft,m.s zinc plated fixing parts Version A (Cam control)
1. CAM ref. to page 9A-001
Remark Cylinder style Dust Cap
1. Key different on request. 1102-1P01-C
2. CH751 key code on request Alike YK333 Profile Round Cylinder 1102-1P02-C
Double Bit 4mm 1102-1P03-C
Square 7mm 1102-1P04-C
Triangular 8mm

1A-009
