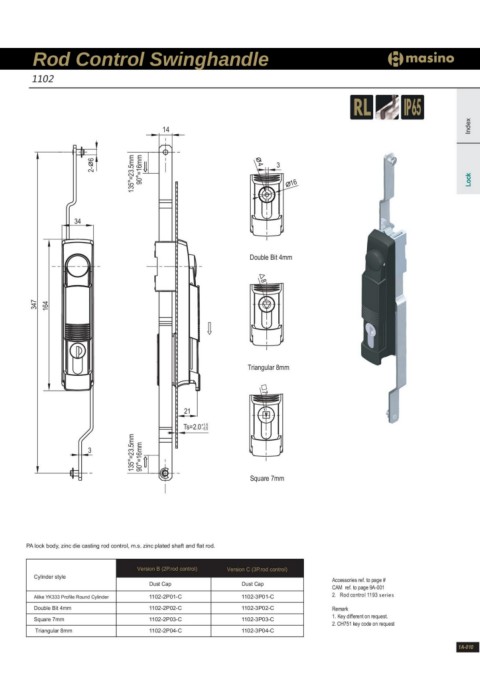

Rod Control Swinghandle Index

1102 2- 6 4 △8 □7 Lock
135°=23.5mm
14
390°=16mm
16

34
Double Bit 4mm

347
164

Triangular 8mm135°=23.5mm
90°=16mm
21
Ts=2.0+- 10..55
3

Square 7mm

PA lock body, zinc die casting rod control, m.s. zinc plated shaft and flat rod.

Cylinder style Version B (2P.rod control) Version C (3P.rod control) Accessories ref. to page #
CAM ref. to page 9A-001
Alike YK333 Profile Round Cylinder Dust Cap Dust Cap 2. Rod control 1193 series
Double Bit 4mm 1102-2P01-C 1102-3P01-C Remark
Square 7mm 1102-2P02-C 1102-3P02-C 1. Key different on request.
Triangular 8mm 1102-2P03-C 1102-3P03-C 2. CH751 key code on request
1102-2P04-C 1102-3P04-C

1A-010
