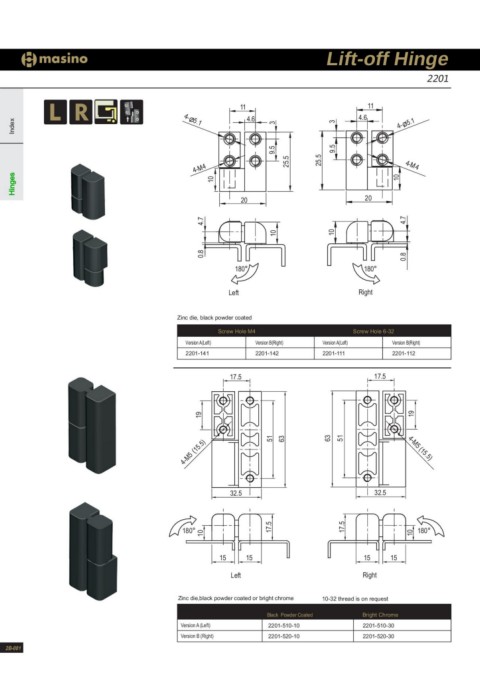

Lift-off Hinge
2201

Index 4- 5.1 11 9.5 3 11 4- 5.1
4.6 25.5 4.6
25.5
4-M4 4-M4
20 9.5 3 20

Hinges 0.8 4.7 0.8 4.7 10
10
10
10

180° 180°
Left Right

Zinc die, black powder coated

Screw Hole M4 Screw Hole 6-32
Version B(Right)
Version A(Left) 2201-142 Version A(Left) Version B(Right)
2201-141
2201-111 2201-112

17.5 17.5

4-M5 (15.5) 19 17.5 51 4-M5 (15.5)10 19
63
63

17.5 51
32.5 32.5

180° 180°
10

15 15 15 15
Left Right

Zinc die,black powder coated or bright chrome 10-32 thread is on request

Version A (Left) Black Powder Coated Bright Chrome
Version B (Right) 2201-510-10 2201-510-30
2201-520-10 2201-520-30

2B-001
