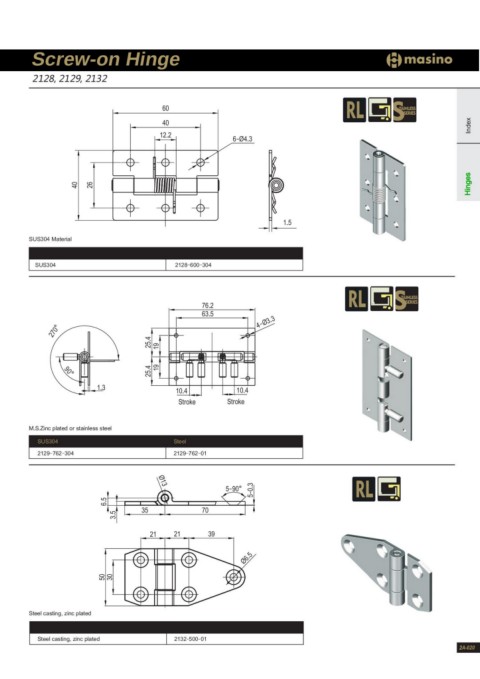

Screw-on Hinge Index

2128, 2129, 2132 6-Ø4.3

60
40
12.2

270° Hinges
40
SUS304 Material 26 2128-600-304 1.5
SUS304 4-Ø3.3
76.2
63.5

25.4 25.4
19 19
Ø13
1.3 90° 10.4 10.4
Stroke Stroke
M.S.Zinc plated or stainless steel
SUS304 Steel
2129-762-304 2129-762-01

6.5 5-90° 5-0.3
3.5 70
35
21 21 39

Ø6.5

5300

Steel casting, zinc plated 2132-500-01
Steel casting, zinc plated
