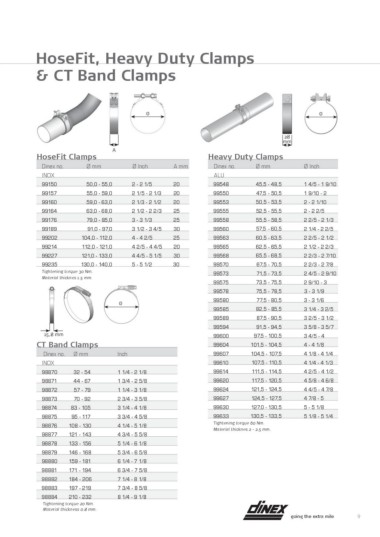

Page 9 - pakoputkistojen_yleisosat

HoseFit, Heavy Duty Clamps
& CT Band Clamps

Ø Ø

28
mm

A Heavy Duty Clamps

HoseFit Clamps

Dinex no. Ø mm Ø Inch A mm Dinex no. Ø mm Ø Inch

INOX ALU

99150 50 ,0 - 5 5,0 2 - 2 1/5 20 99548 45, 5 - 4 8,5 1 4/5 - 1 9/10

99157 55,0 - 59 ,0 2 1/5 - 2 1/3 20 99550 4 7,5 - 50,5 1 9/10 - 2

99160 59 ,0 - 6 3,0 2 1/3 - 2 1/2 20 99553 50,5 - 5 3,5 2 - 2 1/10

99164 63 ,0 - 6 8,0 2 1/2 - 2 2/3 25 99555 52,5 - 5 5,5 2 - 2 2/5

99176 79 ,0 - 8 5,0 3 - 3 1/3 25 99558 55,5 - 58, 5 2 2/5 - 2 1/3

99189 91, 0 - 97 ,0 3 1/2 - 3 4/5 30 99560 57,5 - 60,5 2 1/4 - 2 2/5

99202 104, 0 - 11 2,0 4 - 4 2/5 25 99563 60 ,5 - 6 3,5 2 2/5 - 2 1/2

99214 112,0 - 121 ,0 4 2/5 - 4 4/5 20 99565 62 ,5 - 6 5,5 2 1/2 - 2 2/3

99227 1 21,0 - 133 ,0 4 4/5 - 5 1/5 30 99568 65,5 - 68, 5 2 2/3 - 2 7/10

99235 130, 0 - 14 0,0 5 - 5 1/2 30 99570 67, 5 - 7 0,5 2 2/3 - 2 7/8

Tightening torque 30 Nm. 99573 71 ,5 - 7 3,5 2 4/5 - 2 9/10
Material thicknes 1.5 mm.
99575 73,5 - 75, 5 2 9/10 - 3

99578 75,5 - 78, 5 3 - 3 1/9

Ø 99580 77 ,5 - 8 0,5 3 - 3 1/6

99585 82 ,5 - 8 5,5 3 1/4 - 3 2/5

99589 87 ,5 - 9 0,5 3 2/5 - 3 1/2

99594 91 ,5 - 9 4,5 3 5/8 - 3 5/7

15,8 mm 99600 97,5 - 10 0,5 3 4/5 - 4

CT Band Clamps 99604 10 1,5 - 104, 5 4 - 4 1/8

Dinex no. Ø mm Inch 99607 104,5 - 10 7,5 4 1/8 - 4 1/4

INOX 99610 107,5 - 11 0,5 4 1/4 - 4 1/3

98870 32 - 54 1 1/4 - 2 1/8 99614 111,5 - 11 4,5 4 2/5 - 4 1/2

98871 44 - 67 1 3/4 - 2 5/8 99620 117,5 - 12 0,5 4 5/8 - 4 6/8

98872 57 - 79 1 1/4 - 3 1/8 99624 121,5 - 12 4,5 4 4/5 - 4 7/8

98873 70 - 92 2 3/4 - 3 5/8 99627 124,5 - 12 7,5 4 7/8 - 5

98874 83 - 105 3 1/4 - 4 1/8 99630 127,0 - 13 0,5 5 - 5 1/8

98875 95 - 117 3 3/4 - 4 5/8 99633 1 30,5 - 133, 5 5 1/8 - 5 1/4

98876 108 - 130 4 1/4 - 5 1/8 Tightening torque 60 Nm.
Material thicknes 2 - 2,5 mm.
98877 121 - 143 4 3/4 - 5 5/8

98878 133 - 156 5 1/4 - 6 1/8

98879 146 - 168 5 3/4 - 6 5/8

98880 159 - 181 6 1/4 - 7 1/8

98881 171 - 194 6 3/4 - 7 5/8

98882 184 - 206 7 1/4 - 8 1/8

98883 197 - 219 7 3/4 - 8 5/8

98884 210 - 232 8 1/4 - 9 1/8 going the extra mile 9

Tightening torque 20 Nm.
Material thickness 0.8 mm.
