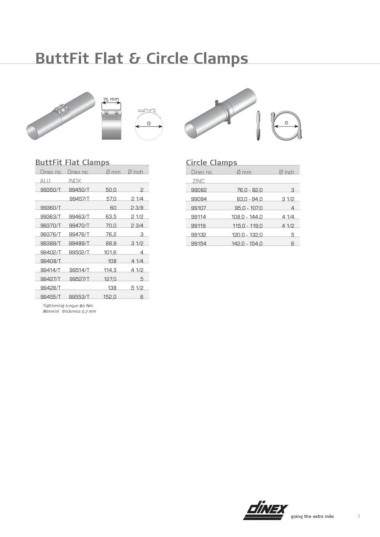

ButtFit Flat & Circle Clamps
75 mm
Ø Ø
ButtFit Flat Clamps Circle Clamps
Dinex no. Dinex no. Ø mm Ø Inch Dinex no. Ø mm Ø Inch
ALU INOX ZINC
99350/T 99450/T 50,0 2 99082 76,0 - 82 ,0 3
99457/T 57,0 2 1/4 99094 83,0 - 94,0 3 1/2
99360/T 60 2 3/8 99107 95,0 - 107,0 4
99363/T 99463/T 63,5 2 1/2 99114 108,0 - 144 ,0 4 1/4
99370/T 99470/T 70,0 2 3/4 99119 115,0 - 119,0 4 1/2
99376/T 99476/T 76,2 3 99132 120,0 - 132 ,0 5
99389/T 99489/T 88,9 3 1/2 99154 142,0 - 154 ,0 6
99402/T 99502/T 101,6 4
99408/T 108 4 1/4
99414/T 99514/T 114,3 4 1/2
99427/T 99527/T 127,0 5
99428/T 138 5 1/2
99455/T 99553/T 152,0 6
Tightening torque 80 Nm.
Material thickness 0,7 mm
