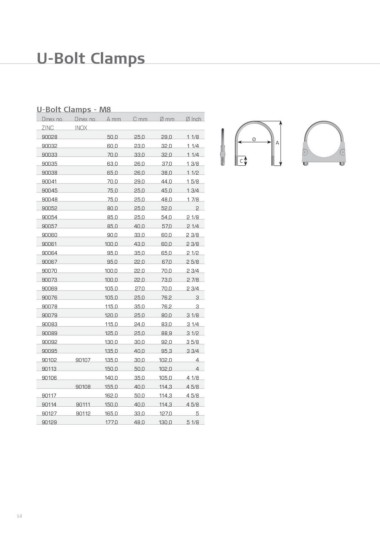

U-Bolt Clamps

U-Bolt Clamps - M8 Ø A
C
Dinex no. Dinex no. A mm C mm Ø mm Ø Inch
ZINC INOX
90028 50,0 25,0 29,0 1 1/8
90032 60,0 23,0 32,0 1 1/4
90033 70,0 33,0 32,0 1 1/4
90035 63,0 26,0 37,0 1 3/8
90038 65,0 26,0 38,0 1 1/2
90041 70,0 29,0 44,0 1 5/8
90045 75,0 25,0 45,0 1 3/4
90048 75,0 25,0 48,0 1 7/8
90052 80,0 25,0 52,0 2
90054 85,0 25,0 54,0 2 1/8
90057 85,0 40,0 57,0 2 1/4
90060 90,0 33,0 60,0 2 3/8
90061 100,0 43,0 60,0 2 3/8
90064 95,0 35,0 65,0 2 1/2
90067 95,0 22,0 67,0 2 5/8
90070 100,0 22,0 70,0 2 3/4
90073 100,0 22,0 73,0 2 7/8
90069 105,0 27,0 70,0 2 3/4
90076 105,0 25,0 76,2 3
90078 115,0 35,0 76,2 3
90079 120,0 25,0 80,0 3 1/8
90083 115,0 24,0 83,0 3 1/4
90089 125,0 25,0 88,9 3 1/2
90092 130,0 30,0 92,0 3 5/8
90095 135,0 40,0 95,3 3 3/4
90102 90107 135,0 30,0 102,0 4
90113 150,0 50,0 102,0 4
90106 140,0 35,0 105,0 4 1/8
90108 155,0 40,0 114,3 4 5/8
90117 162,0 50,0 114,3 4 5/8
90114 90111 150,0 40,0 114,3 4 5/8
90127 90112 165,0 33,0 127,0 5
90129 177,0 48,0 130,0 5 1/8

12
