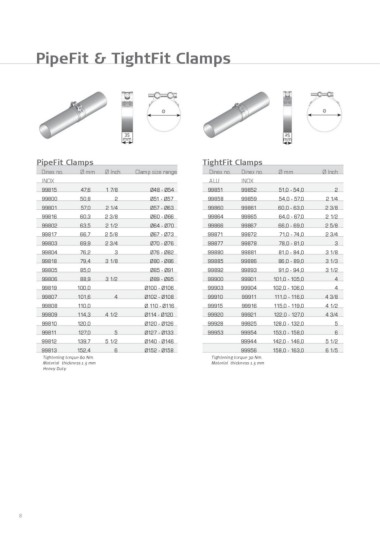

PipeFit & TightFit Clamps
Ø Ø
35 25
mm mm
PipeFit Clamps TightFit Clamps
Dinex no. Ø mm Ø Inch Clamp size range Dinex no. Dinex no. Ø mm Ø Inch
INOX ALU INOX
99815 47,6 1 7/8 Ø48 - Ø54 99851 99852 51,0 - 54, 0 2
99800 50,8 2 Ø51 - Ø57 99858 99859 54,0 - 57, 0 2 1/4
99801 57,0 2 1/4 Ø57 - Ø63 99860 99861 6 0,0 - 63, 0 2 3/8
99816 60,3 2 3/8 Ø60 - Ø66 99864 99865 64,0 - 67, 0 2 1/2
99802 63,5 2 1/2 Ø64 - Ø70 99866 99867 66,0 - 69, 0 2 5/8
99817 66,7 2 5/8 Ø67 - Ø73 99871 99872 71,0 - 74, 0 2 3/4
99803 69,9 2 3/4 Ø70 - Ø76 99877 99878 78,0 - 81, 0 3
99804 76,2 3 Ø76 - Ø82 99880 99881 81,0 - 84, 0 3 1/8
99818 79,4 3 1/8 Ø80 - Ø86 99885 99886 86,0 - 89, 0 3 1/3
99805 85,0 Ø85 - Ø91 99892 99893 91,0 - 94, 0 3 1/2
99806 88,9 3 1/2 Ø89 - Ø95 99900 99901 10 1,0 - 105, 0 4
99819 100,0 Ø100 - Ø106 99903 99904 10 2,0 - 106, 0 4
99807 101,6 4 Ø102 - Ø108 99910 99911 11 1,0 - 116, 0 4 3/8
99808 110,0 Ø 110 - Ø116 99915 99916 11 5,0 - 119, 0 4 1/2
99809 114,3 4 1/2 Ø114 - Ø120 99920 99921 12 2,0 - 127, 0 4 3/4
99810 120,0 Ø120 - Ø126 99928 99925 12 8,0 - 132, 0 5
99811 127,0 5 Ø127 - Ø133 99953 99954 15 3,0 - 158, 0 6
99812 139,7 5 1/2 Ø140 - Ø146 99944 14 2,0 - 146, 0 5 1/2
99813 152,4 6 Ø152 - Ø158 99956 15 8,0 - 163, 0 6 1/5
Tightening torque 60 Nm. Tightening torque 30 Nm.
Material thickness 1.5 mm Material thickness 1.5 mm
Heavy Duty
