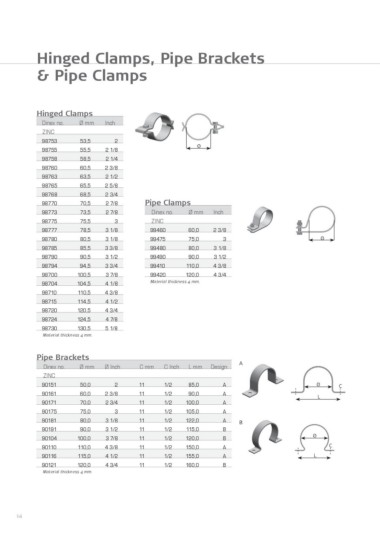

Hinged Clamps, Pipe Brackets
& Pipe Clamps

Hinged Clamps Ø

Dinex no. Ø mm Inch Pipe Clamps
ZINC
98753 53,5 2 Dinex no. Ø mm Inch
98755 55,5 2 1/8
98758 58,5 2 1/4 ZINC
98760 60,5 2 3/8
98763 63,5 2 1/2 99460 60,0 2 3/8
98765 65,5 2 5/8
98768 68,5 2 3/4 99475 75,0 3 Ø
98770 70,5 2 7/8
98773 73,5 2 7/8 99480 80,0 3 1/8 ØC
98775 75,5 3 L
98777 78,5 3 1/8 99490 90,0 3 1/2 Ø
98780 80,5 3 1/8
98785 85,5 3 3/8 99410 110,0 4 3/8 C
98790 90,5 3 1/2 L
98794 94,5 3 3/4 99420 120,0 4 3/4
98700 100,5 3 7/8
98704 104,5 4 1/8 Material thickness 4 mm.
98710 110,5 4 3/8
98715 114,5 4 1/2
98720 120,5 4 3/4
98724 124,5 4 7/8
98730 130,5 5 1/8

Material thickness 4 mm.

Pipe Brackets
C mm C Inch L mm Design A
Dinex no. Ø mm Ø Inch

ZINC

90151 50,0 2 11 1/2 85,0 A

90161 60,0 2 3/8 11 1/2 90,0 A

90171 70,0 2 3/4 11 1/2 100,0 A

90175 75,0 3 11 1/2 105,0 A

90181 80,0 3 1/8 11 1/2 122,0 A B
90191 90,0 3 1/2 11 1/2 115,0 B

90104 100,0 3 7/8 11 1/2 120,0 B

90110 110,0 4 3/8 11 1/2 150,0 A

90116 115,0 4 1/2 11 1/2 155,0 A

90121 120,0 4 3/4 11 1/2 160,0 B
Material thickness 4 mm.

14
