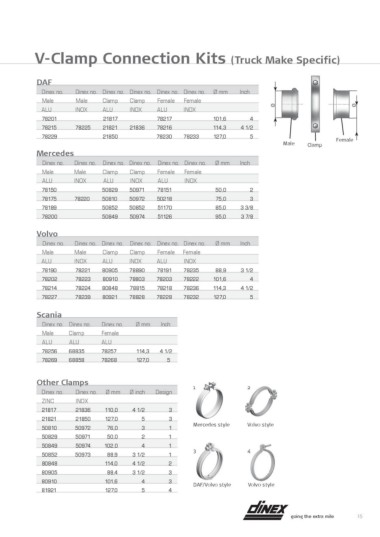

V-Clamp Connection Kits (Truck Make Specific)

DAF

Dinex no. Dinex no. Dinex no. Dinex no. Dinex no. Dinex no. Ø mm Inch

Male Male Clamp Clamp Female Female Ø
Ø
ALU INOX ALU INOX ALU INOX

78201 21817 78217 101,6 4

78215 78225 21821 21836 78216 114,3 4 1/2

78229 21850 78230 78233 127,0 5 Female

Male Clamp

Mercedes

Dinex no. Dinex no. Dinex no. Dinex no. Dinex no. Dinex no. Ø mm Inch

Male Male Clamp Clamp Female Female

ALU INOX ALU INOX ALU INOX

78150 50829 50971 78151 50,0 2

78175 78220 50810 50972 50218 75,0 3

78189 50852 50852 51170 85,0 3 3/8

78200 50849 50974 51126 95,0 3 7/8

Volvo

Dinex no. Dinex no. Dinex no. Dinex no. Dinex no. Dinex no. Ø mm Inch

Male Male Clamp Clamp Female Female

ALU INOX ALU INOX ALU INOX

78190 78221 80905 78890 78191 78235 88,9 3 1/2

78202 78223 80910 78803 78203 78222 101,6 4

78214 78224 80848 78815 78218 78236 114,3 4 1/2

78227 78239 80921 78828 78228 78232 127,0 5

Scania

Dinex no. Dinex no. Dinex no. Ø mm Inch

Male Clamp Female

ALU ALU ALU

78256 68835 78257 114,3 4 1/2

78269 68858 78268 127,0 5

Other Clamps 1 2
Mercedes style Volvo style
Dinex no. Dinex no. Ø mm Ø inch Design 3 4
DAF/Volvo style Volvo style
ZINC INOX

21817 21836 110,0 4 1/2 3

21821 21850 127,0 5 3

50810 50972 76,0 3 1

50829 50971 50,0 2 1

50849 50974 102,0 4 1

50852 50973 88,9 3 1/2 1

80848 114,0 4 1/2 2

80905 88,4 3 1/2 3

80910 101,6 4 3

81921 127,0 5 4
