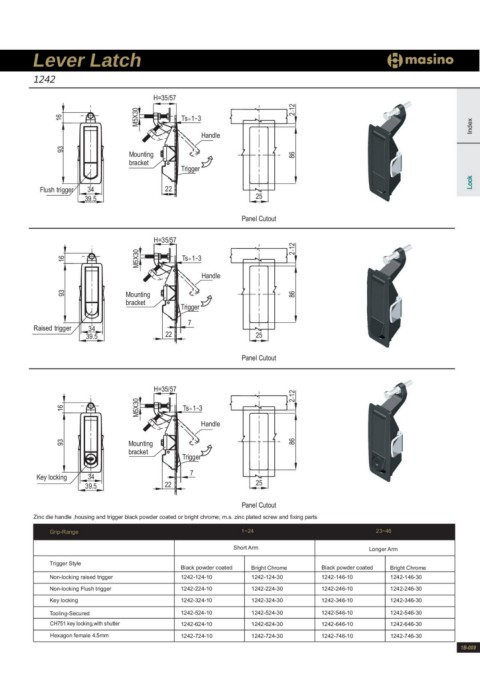

Lever Latch

1242

H=35/57 86 2-12

93 16 Ts=1-3 Index
M5X30 Handle

Mounting Trigger
bracket

Flush trigger 34 22 Lock
39.5
25
H=35/57 Panel Cutout 86 2-12

93 16 Ts=1-3 25
M5X30 Panel Cutout
Handle

Mounting Trigger
bracket
7
Raised trigger 34 22
39.5

H=35/57 86 2-12

93 16 Ts=1-3
M5X30 Handle

Mounting Trigger
bracket

Key locking 34 7 25
39.5 22

Panel Cutout

Zinc die handle ,housing and trigger black powder coated or bright chrome; m.s. zinc plated screw and fixing parts

Grip-Range 1~24 23~46

Short Arm Longer Arm

Trigger Style Black powder coated Bright Chrome Black powder coated Bright Chrome
1242-124-10 1242-124-30 1242-146-10 1242-146-30
Non-locking raised trigger 1242-224-10 1242-224-30 1242-246-10 1242-246-30
Non-locking Flush trigger 1242-324-10 1242-324-30 1242-346-10 1242-346-30
Key locking
1242-524-10 1242-524-30 1242-546-10 1242-546-30
Tooling-Secured 1242-624-10 1242-624-30 1242-646-10 1242-646-30
CH751 key locking,with shutter 1242-724-10 1242-724-30 1242-746-10 1242-746-30
Hexagon female 4.5mm

1B-009
