P. 52

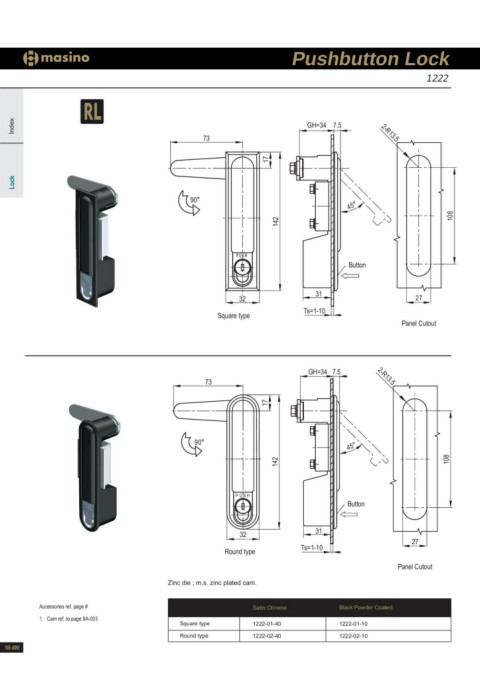

Pushbutton Lock
1222
Index GH=34 7.5 2-R13.5
73
Lock 17
142
90° 45°
108
32
Square type Button
73
31 27
Ts=1-10 Panel Cutout
GH=34 7.5 2-R13.5
17
142
108
90° 45°
PUSH Button
32 31 27
Round type Ts=1-10 Panel Cutout
Zinc die ; m.s. zinc plated cam.
Accessories ref. page # Square type Satin Chrome Black Powder Coated
1. Cam ref. to page 9A-003 Round type
1222-01-40 1222-01-10
1B-006 1222-02-40 1222-02-10
