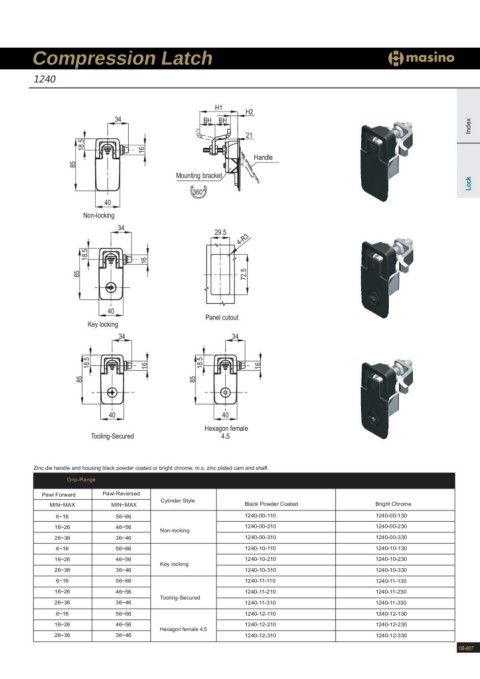

Compression Latch

1240

34 H1 H2 Index
BH BH 21
85 40
18.5 Non-locking Mounting bracket Handle
16 360°
34
Lock

29.5 4-R3

85
18.5
16

72.5

40 Panel cutout
34
Key locking
34

85 18.5
16

85 18.5
16

40 40
Tooling-Secured Hexagon female

4.5

Zinc die handle and housing black powder coated or bright chrome; m.s. zinc plated cam and shaft
Grip-Range

Pawl Forward Pawl Reversed Cylinder Style Black Powder Coated Bright Chrome
MIN~MAX MIN~MAX Non-locking
56~66 Key locking 1240-00-110 1240-00-130
6~16 46~56 Tooling-Secured 1240-00-210 1240-00-230
16~26 36~46 Hexagon female 4.5 1240-00-310 1240-00-330
26~36 56~66 1240-10-110 1240-10-130
6~16 46~56 1240-10-210 1240-10-230
16~26 36~46 1240-10-310 1240-10-330
26~36 56~66 1240-11-110 1240-11-130
6~16 46~56 1240-11-210 1240-11-230
16~26 36~46 1240-11-310 1240-11-330
26~36 56~66 1240-12-110 1240-12-130
6~16 46~56 1240-12-210 1240-12-230
16~26 36~46 1240-12-310 1240-12-330
26~36

1B-007
