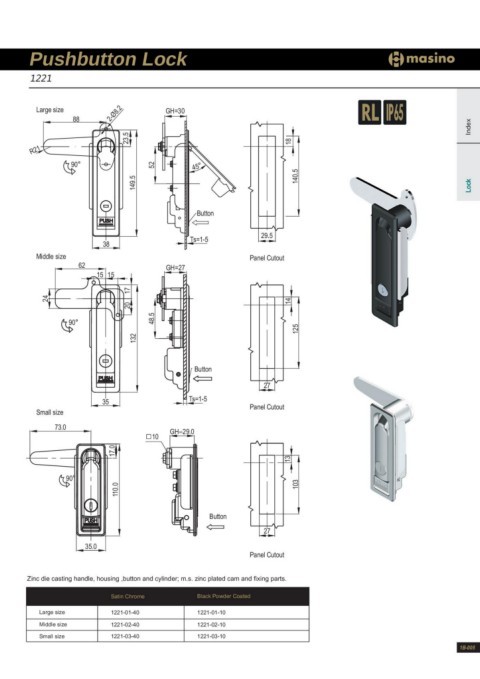

Pushbutton Lock

1221

Large size 2-Ø8.2 GH=30
88 23.5
Index

R21 149.5 45° 140.5 18
90° 52

Lock

38 Button 29.5
Middle size Ts=1-5 Panel Cutout
GH=27
62
15 15

24 20 17 125 14

90° 48.5

132

Small size 35 Button 27
73.0 Ts=1-5 Panel Cutout
10 GH=29.0

90° 110.0 17.0 13
103

Button
27

35.0
Panel Cutout

Zinc die casting handle, housing ,button and cylinder; m.s. zinc plated cam and fixing parts.

Large size Satin Chrome Black Powder Coated
Middle size
Small size 1221-01-40 1221-01-10
1221-02-40 1221-02-10
1221-03-40 1221-03-10

1B-005
