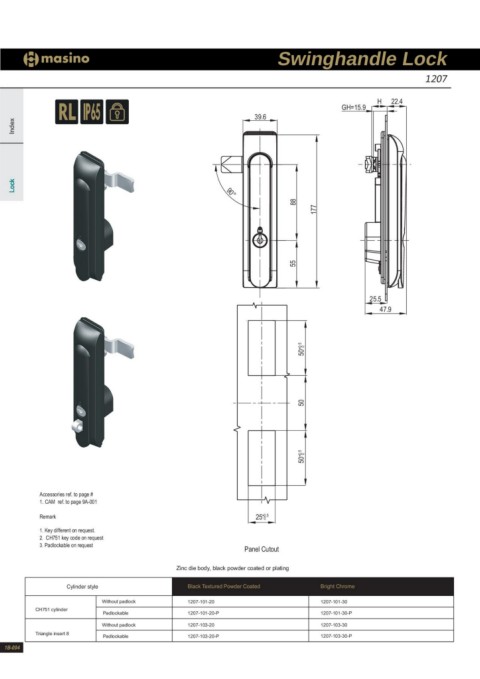

Index Swinghandle Lock
1207
Lock 90° GH=15.9 H 22.4

8839.6
177
25.5
47.955

50+00.5 50 50+00.5

Accessories ref. to page # 25+00.5
1. CAM ref. to page 9A-001
Remark Panel Cutout
1. Key different on request.
2. CH751 key code on request Zinc die body, black powder coated or plating
3. Padlockable on request Black Textured Powder Coated

Cylinder style 1207-101-20 Bright Chrome
1207-101-20-P
CH751 cylinder Without padlock 1207-103-20 1207-101-30
Triangle insert 8 Padlockable 1207-103-20-P 1207-101-30-P
Without padlock 1207-103-30
Padlockable 1207-103-30-P

1B-004
