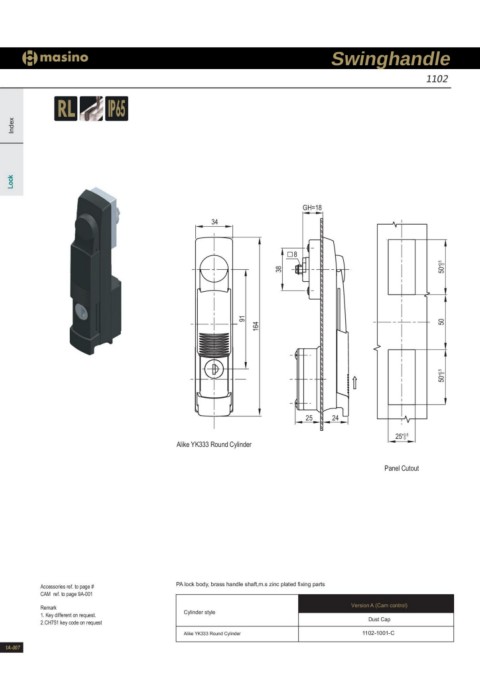

Index Swinghandle
1102
Lock
GH=18
34
8
50+00.5
91
164 50+00.5 50
38
25 24
Alike YK333 Round Cylinder 25+00.5
Panel Cutout
Accessories ref. to page # PA lock body, brass handle shaft,m.s zinc plated fixing parts Version A (Cam control)
CAM ref. to page 9A-001 Cylinder style Dust Cap
Remark
1. Key different on request. Alike YK333 Round Cylinder 1102-1001-C
2.CH751 key code on request
