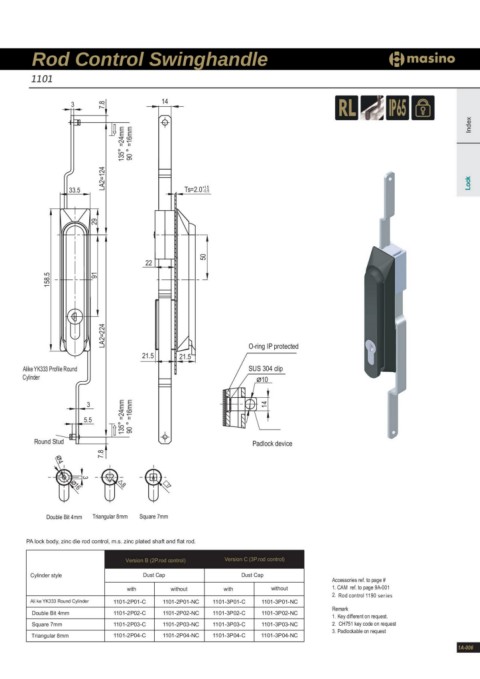

Rod Control Swinghandle

1101

3 14
LA2=124 7.8
135° =24mm Index
90 ° =16mm
33.5 Ts=2.0+-10..55 Lock
22
29

158.5 50 O-ring IP protected
91 14SUS 304 clip

LA2=224 10

21.5 21.5 Padlock device

Alike YK333 Profile Round
Cylinder

3 135° =24mm
5.5 90 ° =16mm

Round Stud

7.8

3 △8 □7
16

4

Double Bit 4mm Triangular 8mm Square 7mm

PA lock body, zinc die rod control, m.s. zinc plated shaft and flat rod.

Version B (2P.rod control) Version C (3P.rod control)

Cylinder style Dust Cap Dust Cap Accessories ref. to page #
1. CAM ref. to page 9A-001
Ali ke YK333 Round Cylinder with without with without 2. Rod control 1190 series
Double Bit 4mm Remark
Square 7mm 1101-2P01-C 1101-2P01-NC 1101-3P01-C 1101-3P01-NC 1. Key different on request.
Triangular 8mm 1101-2P02-C 1101-2P02-NC 1101-3P02-C 1101-3P02-NC 2. CH751 key code on request
1101-2P03-C 1101-2P03-NC 1101-3P03-C 1101-3P03-NC 3. Padlockable on request
1101-2P04-C 1101-2P04-NC 1101-3P04-C 1101-3P04-NC
