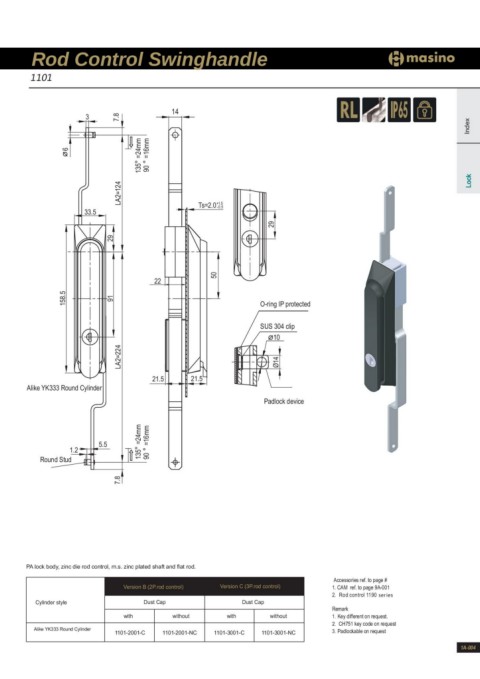

Rod Control Swinghandle

1101

3 14
LA2=124 7.8 Index
135° =24mm
6 90 ° =16mm

Lock

33.5 Ts=2.0+- 10..55

29 50
29
22

158.5 O-ring IP protectedØ14
91 SUS 304 clip

LA2=224 10

Alike YK333 Round Cylinder 21.5 21.5 Padlock device

1.2 5.5 135° =24mm
Round Stud 90 ° =16mm

7.8

PA lock body, zinc die rod control, m.s. zinc plated shaft and flat rod.

Cylinder style Version B (2P.rod control) Version C (3P.rod control) Accessories ref. to page #
Alike YK333 Round Cylinder Dust Cap Dust Cap 1. CAM ref. to page 9A-001
2. Rod control 1190 series
with without with without Remark
1. Key different on request.
1101-2001-C 1101-2001-NC 1101-3001-C 1101-3001-NC 2. CH751 key code on request
3. Padlockable on request

1A-004
