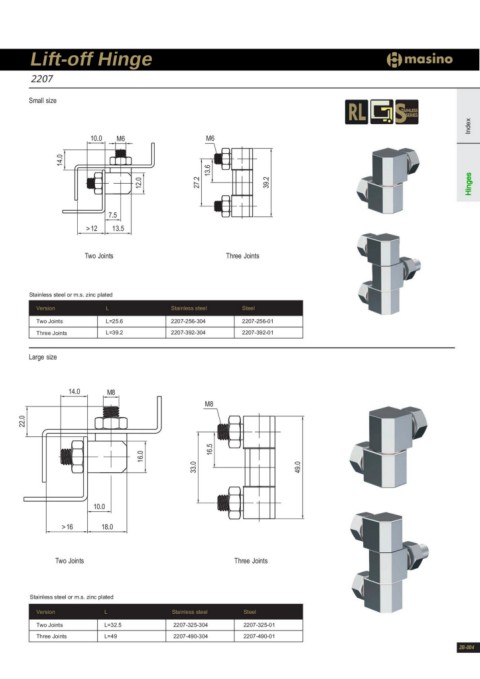

Lift-off Hinge M6 Index
2207
Small size
10.0 M6
14.0 Hinges
12.0
27.2
13.6
39.2
7.5 Three Joints
>12 13.5
Two Joints
Stainless steel or m.s. zinc plated
Version L Stainless steel Steel
Two Joints L=25.6 2207-256-304 2207-256-01
Three Joints L=39.2 2207-392-304 2207-392-01
Large size
14.0 M8
M8
22.0
16.0
33.0
16.5
49.0
10.0 Three Joints
>16 18.0
Two Joints
Stainless steel or m.s. zinc plated
Version L Stainless steel Steel
Two Joints L=32.5 2207-325-304 2207-325-01
Three Joints L=49 2207-490-304 2207-490-01
