P. 140

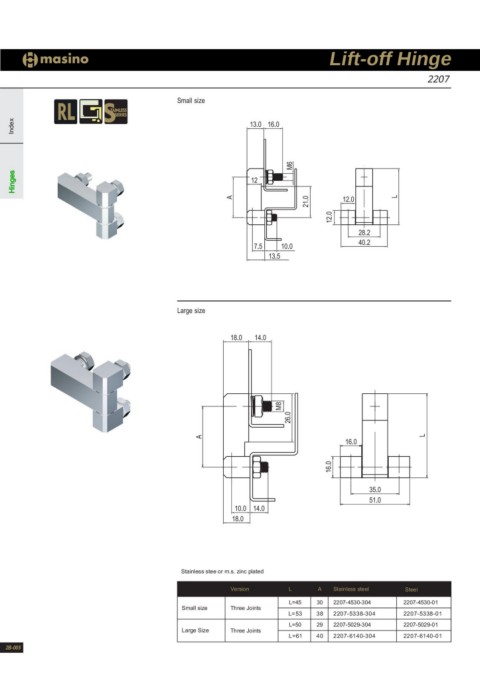

Lift-off Hinge
2207
Small size
Index 13.0 16.0
Hinges 12A
7.5 10.0 M6
12.0
13.5 21.0 28.2
12.040.2
L
Large size
18.0 14.0
M8
26.0
A 16.0 L
35.0
16.0 51.0
10.0 14.0
18.0
Stainless stee or m.s. zinc plated L A Stainless steel Steel
Version
L=45 30 2207-4530-304 2207-4530-01
Small size Three Joints L=53 38 2207-5338-304 2207-5338-01
L=50 29 2207-5029-304 2207-5029-01
Large Size Three Joints L=61 40 2207-6140-304 2207-6140-01
2B-005
