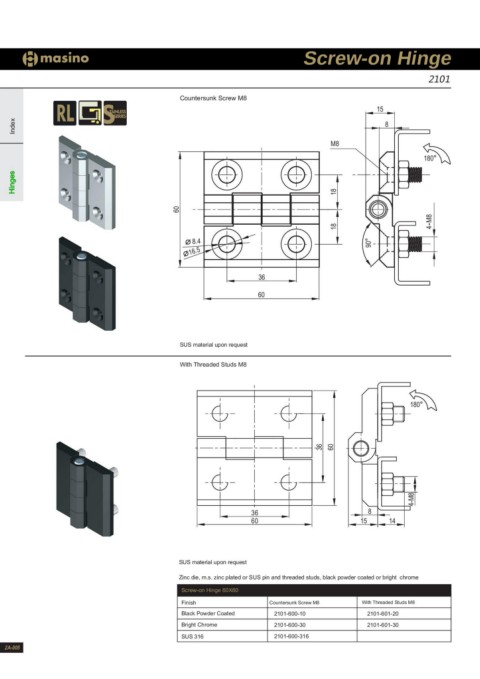

Countersunk Screw M8 Screw-on Hinge
2101
Index
15
8
M8
180°
Hinges 60
18 18
90°
4-M8
8.4
16.5
36
60
SUS material upon request
With Threaded Studs M8
180°
36
60
4-M8
36 8
60 15 14
SUS material upon request
Zinc die, m.s. zinc plated or SUS pin and threaded studs, black powder coated or bright chrome
Screw-on Hinge 60X60
Finish Countersunk Screw M8 With Threaded Studs M8
Black Powder Coated 2101-600-10 2101-601-20
Bright Chrome 2101-600-30 2101-601-30
2101-600-316
SUS 316
