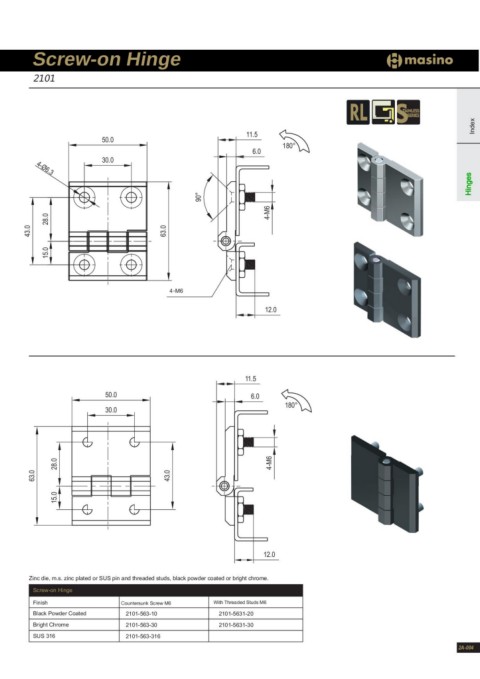

Screw-on Hinge

2101

11.5 Index
6.0
50.0 180°
30.0
4-Ø6.3
Hinges
43.0
15.0 28.0

63.0
90°

4-M6

4-M6

12.0

11.5
50.0 6.0
30.0 180°

63.0
15.0 28.0

43.0
4-M6

12.0

Zinc die, m.s. zinc plated or SUS pin and threaded studs, black powder coated or bright chrome.

Screw-on Hinge

Finish Countersunk Screw M6 With Threaded Studs M6
Black Powder Coated 2101-563-10 2101-5631-20
Bright Chrome 2101-563-30 2101-5631-30
SUS 316 2101-563-316
