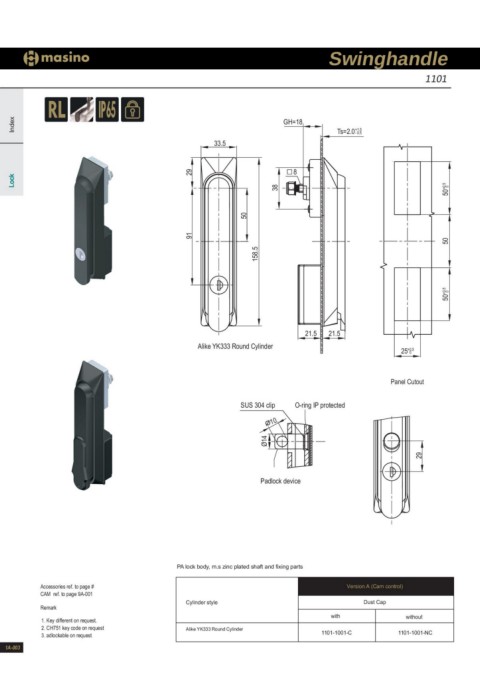

Swinghandle
1101
Index GH=18 Ts=2.0+- 10..55
33.5
Lock 91 29 8
50 50+00.5
38
50
158.5
50+00.5
21.5 21.5
Alike YK333 Round Cylinder 25+00.5
Panel Cutout
SUS 304 clip O-ring IP protected
10
Ø14
29
Padlock device
Accessories ref. to page # PA lock body, m.s zinc plated shaft and fixing parts Version A (Cam control)
CAM ref. to page 9A-001 Cylinder style
Remark Dust Cap
1. Key different on request. Alike YK333 Round Cylinder with without
2. CH751 key code on request
3. adlockable on request 1101-1001-C 1101-1001-NC
1A-003
