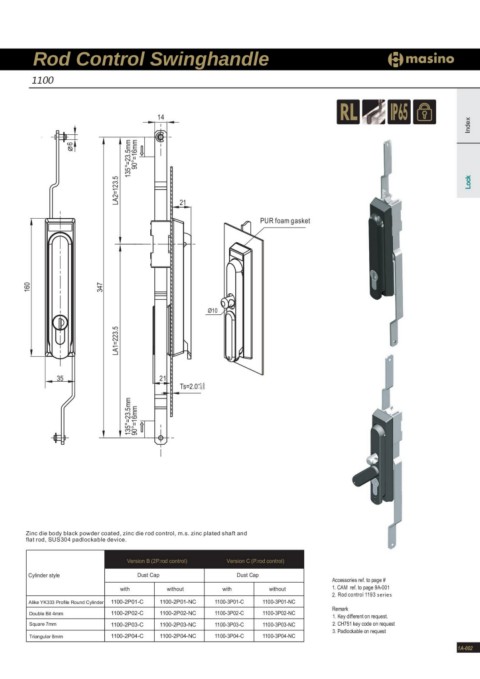

Rod Control Swinghandle Index
1100 6 Lock
LA2=123.5
14
1359°0=°2=31.65mmmm
21
160 PUR foam gasket347
LA1=223.5
Ø10
35 21
Ts=2.0+- 10..55
1930°5°=1=263m.5mmm
Zinc die body black powder coated, zinc die rod control, m.s. zinc plated shaft and
flat rod, SUS304 padlockable device.
Version B (2P.rod control) Version C (P.rod control)
Cylinder style Dust Cap Dust Cap Accessories ref. to page #
1. CAM ref. to page 9A-001
Alike YK333 Profile Round Cylinder with without with without 2. Rod control 1193 series
Double Bit 4mm Remark
Square 7mm 1100-2P01-C 1100-2P01-NC 1100-3P01-C 1100-3P01-NC 1. Key different on request.
1100-2P02-C 1100-2P02-NC 1100-3P02-C 1100-3P02-NC 2. CH751 key code on request
Triangular 8mm 1100-2P03-C 1100-2P03-NC 1100-3P03-C 1100-3P03-NC 3. Padlockable on request
1100-2P04-C 1100-2P04-NC 1100-3P04-C 1100-3P04-NC
1A-002
