P. 110

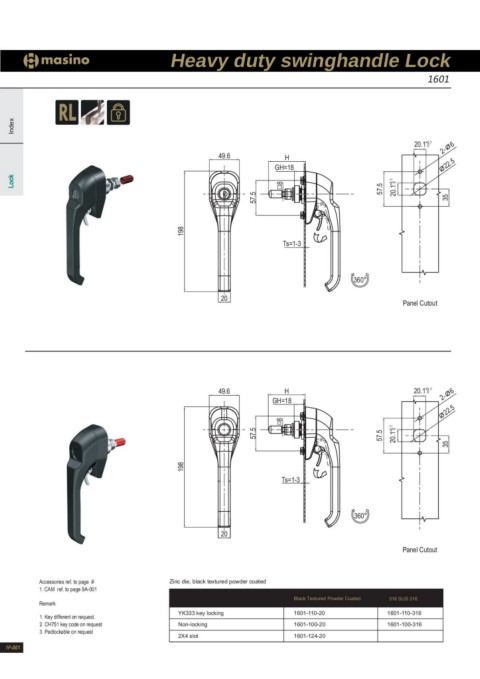

Heavy duty swinghandle Lock
1601
Index
20.1+00.1 2- 6
22.5
49.6 H
GH=18
Lock 198
57.5
8
57.5
20.1+00.1
35
Ts=1-3
360°
20 Panel Cutout
49.6 H 20.1+00.1 2- 6
GH=18 22.5
198
57.5
8
57.5
20.1+00.1
35
Ts=1-3
20 360°
Panel Cutout
Zinc die, black textured powder coated
Accessories ref. to page # Black Textured Powder Coated 316 SUS 316
1. CAM ref. to page 9A-001 YK333 key locking
Remark Non-locking 1601-110-20 1601-110-316
1. Key different on request. 2X4 slot 1601-100-20 1601-100-316
2. CH751 key code on request 1601-124-20
3. Padlockable on request
1F-001
