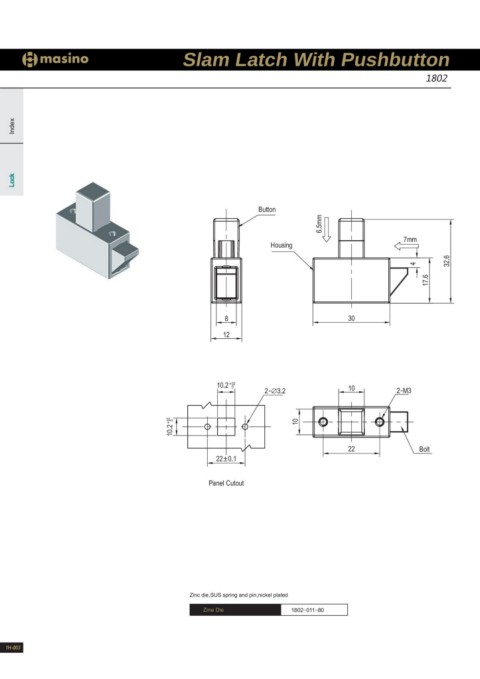

Slam Latch With Pushbutton
1802

Index

Lock

Button 6.5mm7mm
Housing 4
17.6
32.6

8 30
12 10 2-M3
22 Bolt
10.2+002 2-∅3.2

10.2+002
10

22±0.1
Panel Cutout

Zinc die,SUS spring and pin,nickel plated

Zine Die 1802-011-80

1H-003
