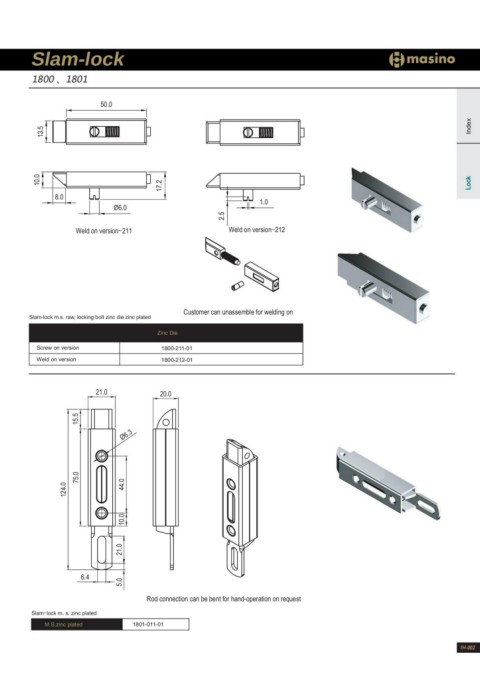

Slam-lock
1800 、1801
50.0
10.0 13.5 Index
17.2
2.5 Lock
8.0 1.0
Ø6.0 Weld on version-212
Weld on version-211
Slam-lock m.s. raw, locking bolt zinc die zinc plated Customer can unassemble for welding on
Zinc Die
Screw on version 1800-211-01
Weld on version 1800-212-01
21.0 20.0
124.0 Ø6.3
75.0 15.5
5.0 21.0 10.0 44.0
6.4
Rod connection can be bent for hand-operation on request
Slam-lock m.s.zinc plated
M.S.zinc plated 1801-011-01
