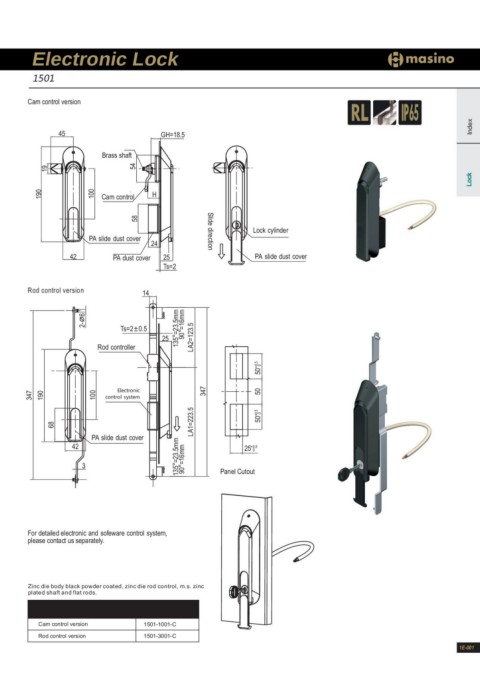

Electronic Lock Index

1501

Cam control version

45 GH=18.5
Brass shaft

190 19 Lock
100
58 54 H
Cam control

PA slide dust cover 24 Slide direction Lock cylinder
42 PA dust cover 25 PA slide dust cover

Ts=2

Rod control version 14

347 Ts=2±0.5 25 1359°0=°2=3.165mmmm
190 Rod controller LA2=123.5
68
Electronic 19305°°==1263.m5mmm 50+00.5 50 50+00.5
2- 6 control system LA1=223.5
100 347
PA slide dust cover
42 25+00.5
Panel Cutout
3

For detailed electronic and sofeware control system,
please contact us separately.

Zinc die body black powder coated, zinc die rod control, m.s. zinc
plated shaft and flat rods.

Cam control version 1501-1001-C
Rod control version 1501-3001-C

1E-001
