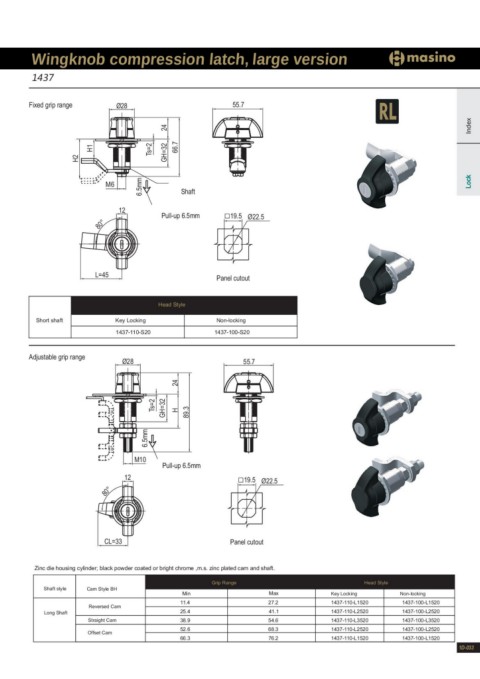

Wingknob compression latch, large version
1437
Fixed grip range Ø28 55.7
Ts=2 Index
GH=32 24
H2
H1 66.7
M6 6.5mm Shaft Lock
12 Pull-up 6.5mm
19.5 Ø22.5
80°
L=45 Panel cutout
Short shaft Head Style Non-locking
Key Locking 1437-100-S20
Adjustable grip range 1437-110-S20
55.7
Ø28
Ts=2 H 24
GH=32 89.3
6.5mm
M10 Pull-up 6.5mm
12
19.5 Ø22.5
80°
CL=33 Panel cutout
Zinc die housing cylinder; black powder coated or bright chrome ,m.s. zinc plated cam and shaft.
Shaft style Cam Style BH Grip Range Head Style
Long Shaft
Reversed Cam Min Max Key Locking Non-locking
Straight Cam 11.4 27.2 1437-110-L1520 1437-100-L1520
Offset Cam 25.4 41.1 1437-110-L2520 1437-100-L2520
38.9 54.6 1437-110-L3520 1437-100-L3520
52.6 68.3 1437-110-L2520 1437-100-L2520
66.3 76.2 1437-110-L1520 1437-100-L1520
