P. 111

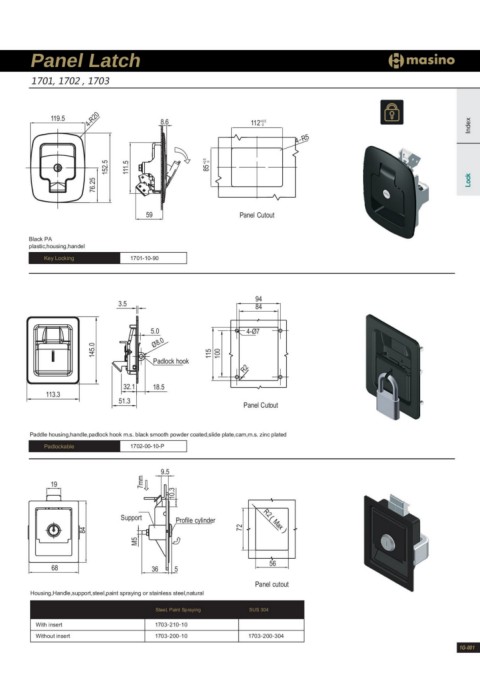

Panel Latch
1701, 1702 , 1703
119.5 76.25 4-R20 8.6 112+00.5 Index
152.5
111.5 4-R5
+00.585
Lock
59 Panel Cutout
Black PA 1701-10-90
plastic,housing,handel
Key Locking
3.5 94
84
5.0 4-Ø7
Ø8.0
Padlock hook Panel Cutout
145.0
115
100
R2
113.3 32.1 18.5
51.3
Paddle housing,handle,padlock hook m.s. black smooth powder coated,slide plate,cam,m.s. zinc plated
Padlockable 1702-00-10-P
9.5
19
7mm
10.3
Support Profile cylinder R2（Max）
84 72
M5
68 36 5 56
Panel cutout
Housing,Handle,support,steel,paint spraying or stainless steel,natural
SUS 304
With insert Steel, Paint Spraying
Without insert 1703-200-304
1703-210-10
1703-200-10
1G-001
