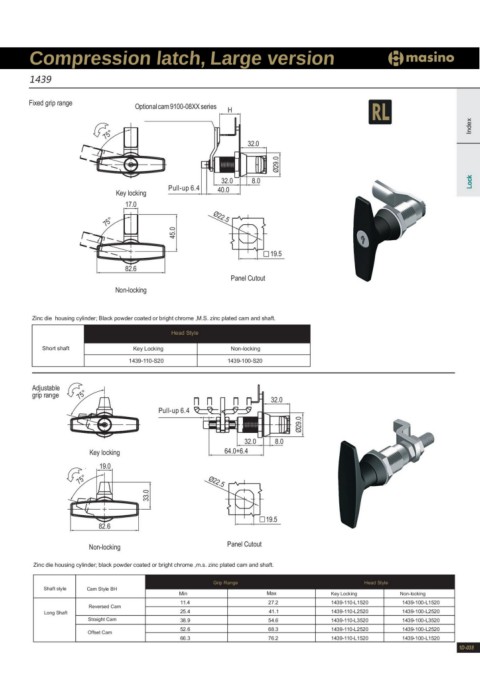

Compression latch, Large version

1439

Fixed grip range Optional cam 9100-08XX series H

75° 32.0 Index

45.0Pull-up 6.432.0 8.0 Lock
Ø29.040.0
Key locking
17.0 Ø22.5

75°

82.6 19.5
Non-locking Panel Cutout

Zinc die housing cylinder; Black powder coated or bright chrome ,M.S. zinc plated cam and shaft.

Head Style

Short shaft Key Locking Non-locking
1439-110-S20 1439-100-S20

gArdipjursatanbglee 75° 32.0

Pull-up 6.4
33.0
Ø29.032.08.0
64.0+6.4
Key locking
Ø22.5
19.0
75°

82.6 19.5
Non-locking Panel Cutout

Zinc die housing cylinder; black powder coated or bright chrome ,m.s. zinc plated cam and shaft.

Shaft style Cam Style BH Grip Range Head Style
Long Shaft
Reversed Cam Min Max Key Locking Non-locking
Straight Cam 11.4 27.2 1439-110-L1520 1439-100-L1520
Offset Cam 25.4 41.1 1439-110-L2520 1439-100-L2520
38.9 54.6 1439-110-L3520 1439-100-L3520
52.6 68.3 1439-110-L2520 1439-100-L2520
66.3 76.2 1439-110-L1520 1439-100-L1520

1D-035
