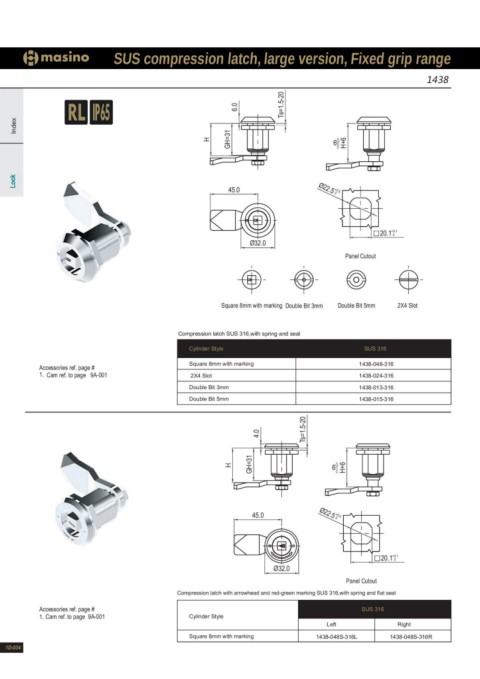

SUS compression latch, large version, Fixed grip range

1438

Index H
GH=31 6.0

Ts=1.5-20
H+6
6
Lock 45.0
Ø32.0 Ø22.5 0+0.5

20.1+00.1
Panel Cutout

Square 8mm with marking Double Bit 3mm Double Bit 5mm 2X4 Slot

1A.ccCeasmsorrieefs. ref. page # Compression latch SUS 316,with spring and seal SUS 316
to page 9A-001
Cylinder Style 1438-048-316
1438-024-316
Square 8mm with marking 1438-013-316
2X4 Slot 1438-015-316
Double Bit 3mm
Double Bit 5mm

H 6
GH=31 4.0

Ts=1.5-20
H+6

45.0 Ø22.5 0+0.5

Ø32.0 20.1+00.1

Panel Cutout

Compression latch with arrowhead and red-green marking SUS 316,with spring and flat seal

Accessories ref. page # Cylinder Style SUS 316
1. Cam ref. to page 9A-001 Square 8mm with marking
Left Right
1D-034 1438-048S-316L 1438-048S-316R
