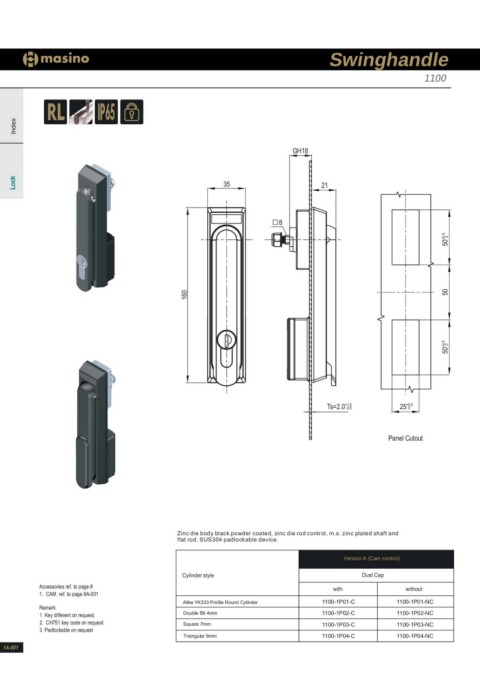

Index Swinghandle
1100
Lock
GH18
35 21
8
50+00.5
160 50
50+00.5
Ts=2.0+- 10..55 25+00.5
Panel Cutout
Zinc die body black powder coated, zinc die rod control, m.s. zinc plated shaft and
flat rod, SUS304 padlockable device.
Version A (Cam control)
Accessories ref. to page # Cylinder style Dust Cap without
1. CAM ref. to page 9A-001
Remark Alike YK333 Profile Round Cylinder with 1100-1P01-NC
1. Key different on request. Double Bit 4mm 1100-1P01-C 1100-1P02-NC
2. CH751 key code on request Square 7mm 1100-1P02-C 1100-1P03-NC
3. Padlockable on request Triangular 8mm 1100-1P03-C 1100-1P04-NC
1100-1P04-C
1A-001
